DIGITAL MAGNETOMETER FOR MICROSATELLITES LEMI-020

Main features:

bullet

World-smallest volume compensated
fluxgate sensor

bullet

Low non-orthogonality and noise,
high resolution and precision

bullet

Small overall size and weight and
low power consumption

bullet

Versatile digitally programmable
parameters and interface


LEMI-020

LEMI-020



LEMI-020 digital vector flux-gate magnetometer (FGM) for onboard measurement of Earth's magnetic field and its variations is based on a customized flux-gate sensor with volume magnetic field compensation. Using of volume compensation in the 20 mm3 sensor cube provides high geometrical stability of the axes and highly improved performances.

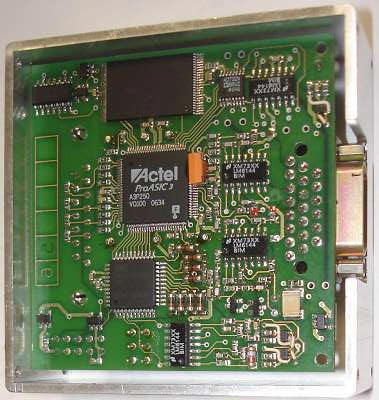

The magnetometer is produced for embedding into the microsatellite structure and consists of two units - sensor and electronics unit. The majority of electronics is combined in a Field Programmable Gate Array (FPGA). It provides full processing (determined by digital correlation algorithm) of amplified and digitized fluxgate sensor output signal and feedback signal and forms FGM output data. Such digital design together with internal nonvolatile 512 B flash memory makes the instrument very flexible, reduces power consumption and provides convenient possibilities for customization of the operation modes.

MAIN TECHNICAL PARAMETERS

Measuring ranges of total magnetic field (other ranges on demand) 64 000 nT
Frequency range DC100 Hz
Sample rate of measurements (other values on demand) 250 Hz
Noise level at 1 Hz < 25 pT/ÖHz
Resolution (programmable, on demand) 1620 bits
Components initial orthogonality < 20 min of arc
Operating temperature range minus 40 + 60 C
Power supply voltage 5 0.25 V
Power consumption < 0.4 W
Weight:
    sensor
    electronic unit PCB
< 25 g
< 40 g
Dimensions:
    sensor
    electronic unit PCB

20 x 20 x 21 mm
65 x 65 x 10 mm

View PDF
