3-COMPONENT PRECISION MAGNETOMETER LEMI-044

Main features:

bulletHigh resolution and precision
bulletTemperature measurement channel
bullet32 GB SD memory card
bulletLow power consumption
bulletRelatively low cost
bullet3 years operational guarantee

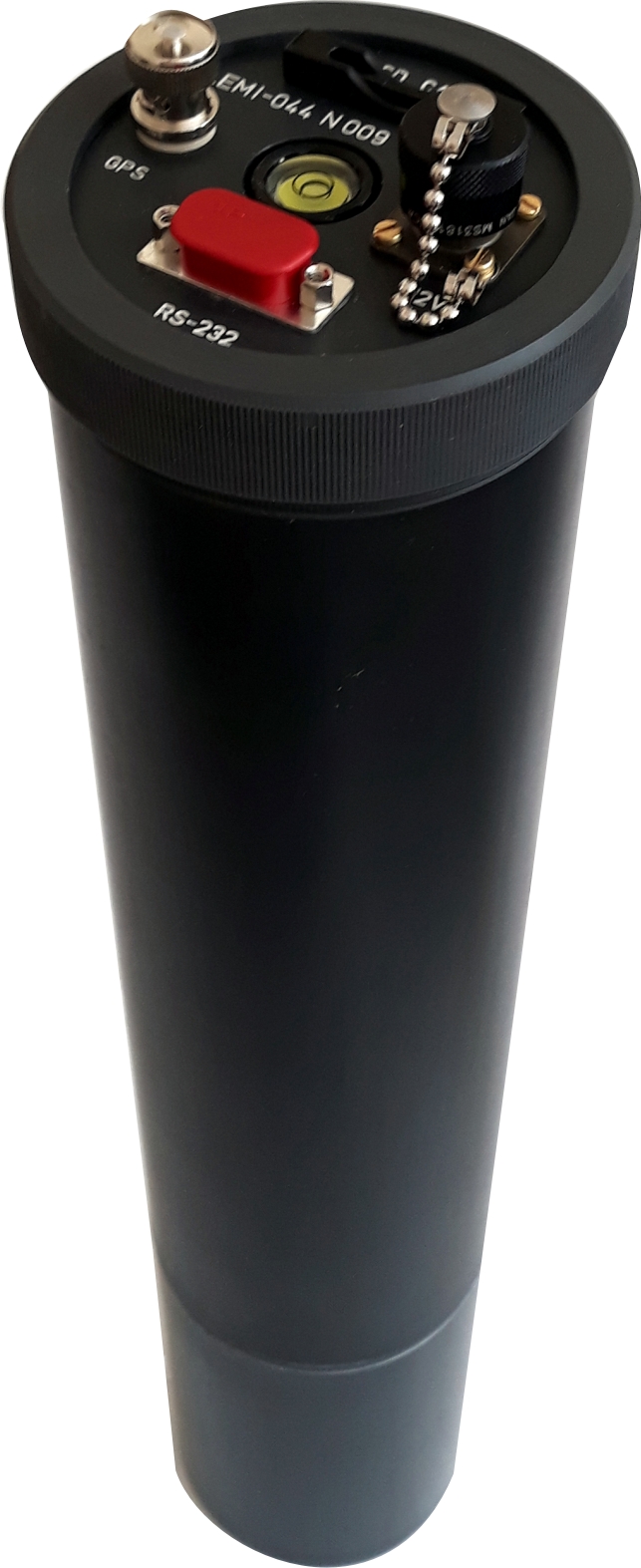

3-COMPONENT PRECISION MAGNETOMETER LEMI-044

An autonomous fluxgate magnetometer LEMI-044 is intended for 3-component measurements of Earth magnetic field in field conditions; it can be also used like reference base station. A special destination of this magnetometer is a record of magnetic field values under high voltage power lines to detect geomagnetically induced currents. It may also be used for magnetovariational research of underground structures, e.g. for mapping ore bodies. Three components of the measured Earths magnetic field data are stored in the SD card gridded to coordinates and time

MAIN TECHNICAL PARAMETERS

Measured range of every component of the magnetic field 70000 nT
Frequency range DC0.3 Hz
Sample rate of measurements 1 Hz
Noise level at 1 Hz < 0.05 nT/Hz
Temperature drift < 0.6 nT/C
ADC (4 channels)
          Attenuation at 50 Hz
          Operating temperature range
32 bits
100 dB
Minus 20 + 50 C
Power supply voltage 5 -18 V
Maximal power consumption < 1 W
Data synchronized with GPS Module UBLOX
Auxiliary digital interface (115200 kbit/sec) RS-232
Volume of SD memory card 32 GB
Weight <2.3 kg
Dimensions
          electronic unit with sensor
D 90 x H 550 mm
