INDUCTION MAGNETOMETER FOR GEOPHYSICAL APPLICATIONS
LEMI-152

Main features


bullet

Wide frequency range:
0.001 - 10000 Hz

bullet

Very low noise

bullet

Low power consumption

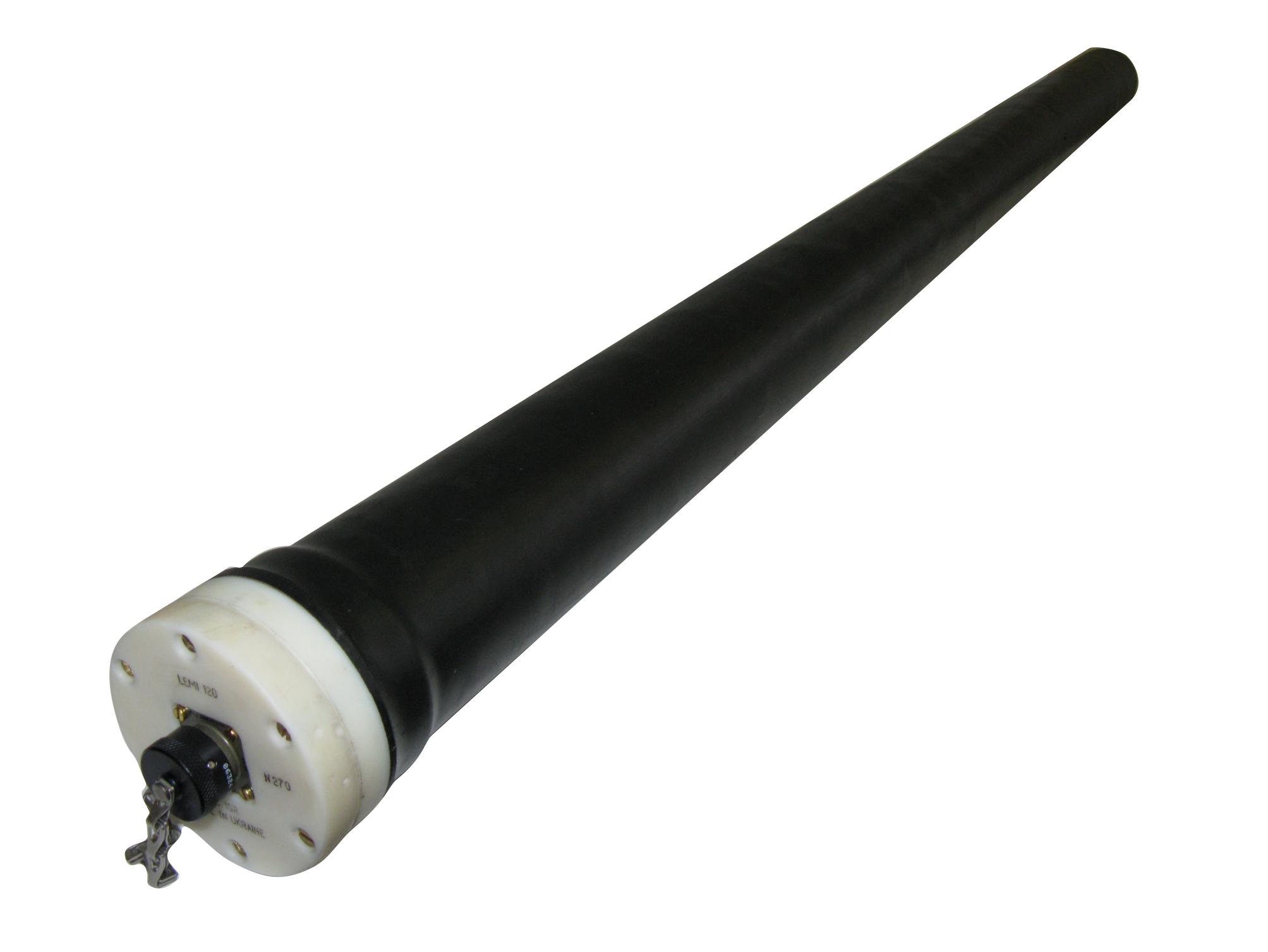

LEMI-152



The induction coil magnetometer LEMI-152 is intended to be used for the study of magnetic field fluctuations in land conditions in the frequency band 0.001-10000 Hz. It can be used both autonomously with any analog registration unit and as a part of a magnetotelluric station. Extremely high sensitivity ensures excellent signal-to-noise ratio for ground measurements.
Low power consumption and wide power supply range allow for long period measurements at remote sites. A rugged and waterproof housing combined with a waterproof output connector prolong the sensor’s active lifetime and ensure overall reliability.





TECHNICAL SPECIFICATION

Frequency band of received signals

0.001 - 10000 Hz

Transfer function corner frequency

1 Hz

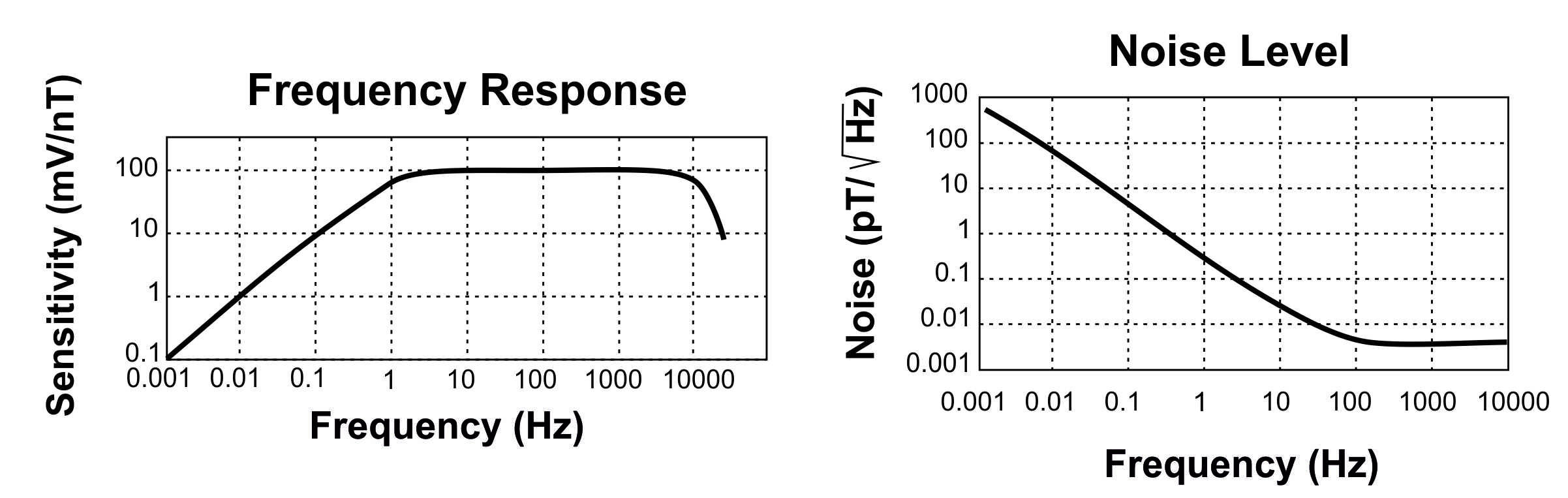

Transformation factor:
 at frequencies 0.0001 – 1 Hz
 at frequencies 1 – 10 000 Hz

100 mV/nT
100* f mV/nT
Magnetic noise level
 at 0.01 Hz,
 at 1 Hz,
 at 1000 Hz

30 pT/√Hz
0.3 pT/√Hz
0.003pT/√Hz
Current consumption 15 mA
Outer dimensions l = 1310 mm, d = 70 mm
Weight 4,0 kg

View PDF
